FHB Backstopping Clutch | Formsprag Clutch

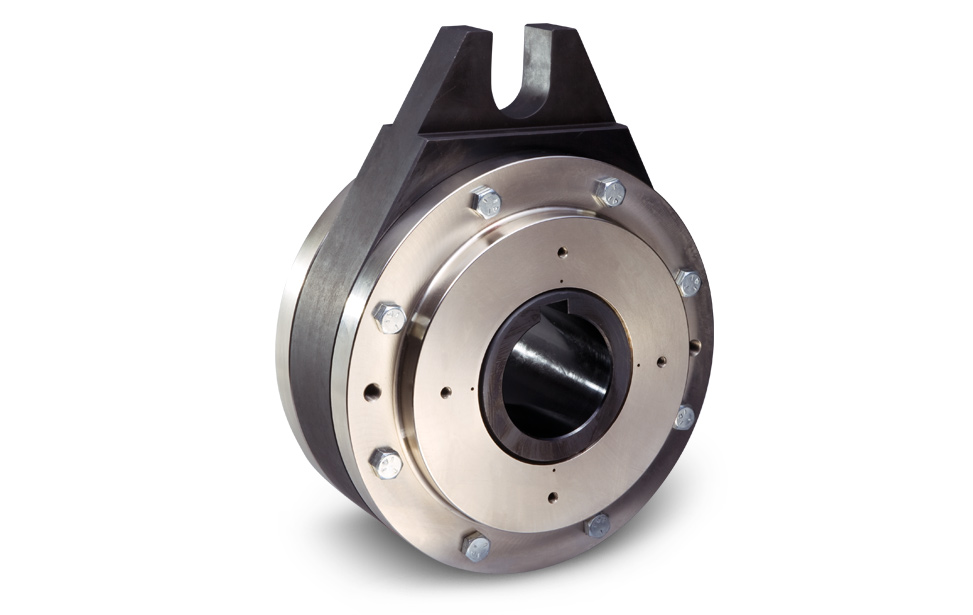

Model FHB is a high speed, centrifugal throw-out (C/T) Sprag type backstop with internal sealed ball bearings. This self-contained design is completely maintenance free. It requires no re-lubrication, no external control, and no adjustment. It engages instantaneously and automatically to prevent any reverse shaft rotation. Model FHB operates at higher overrunning speeds and holds greater torque loads than competing backstops. A larger number of torque transmitting C/T Sprags reduce the hertzian contact stresses during backstopping leading to longer life than is possible with shoe designs.

The FHB backstop is mounted on a through-shaft with its inner race driven by a key, and its integral outer race torque arm prevented from rotating through a clearance fit interface with a fixed reaction pin. The reaction pin may also be used to provide axial restraint of the backstop on the rotating shaft. Typical uses for the Model FHB backstop include inclined conveyors, bucket elevators, and other applications where a rotating shaft must be absolutely prevented from rotating in a reverse direction, as commonly found in mining, aggregates, material handling, and other industries. The high speed capability of the unit make this backstop ideal for mounting on double extended input shafts of gear reducers. The overrunning speed of the rotating shaft should be greater than 400 RPM to assure C/T Sprag “lift-off”.

Product Features

  • Model FHB is directly interchangeable with the older FALK® Model BIF external high-speed backstop.
  • Shipped from the factory lubricated for life
  • Ambient operating temperatures range is from -40°F (-40°C) to 150°F (65°C).

Product Data Sheets

  • p-956-fc_fhb
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • Overrunning, Indexing, Backstopping Clutches

Service Manual

  • External Backstopping Clutches FHB 10, 20, & 60

Related Literature

  • p-1723-4
  • Heavy Duty & Overrunning Clutch Brake Group Overview
  • HDOCB Engineering Capabilities
  • Model FHB High Speed External Backstops
  • (A4) Model FHB High Speed External Backstops
