Fractional HP Clutches and Brakes

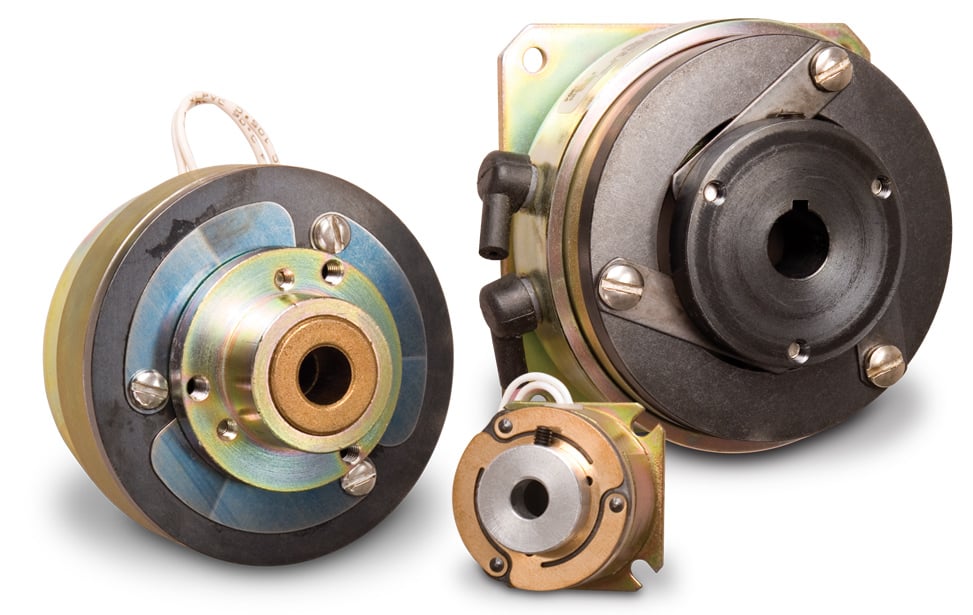

Warner Electric Fractional HP Clutches and Brakes

Fractional HP clutches and brakes provide for on-demand starting and stopping of loads. FHP designs provide electronic control for applications under 1 HP. In line or parallel shaft clutches or clutch couplings allow for mounting flexibility. Spring design armatures provide zero backlash cycling while spline or hex hub options provide a lower cost mounting for less demanding applications. Standard coil voltages are available and special coil designs can be easily developed.

Features
    • Ideal for light-weight and compact fixed wing applications
    • Power-On function 0.9 inch to 4.5 inch diameter (23 mm to 115 mm diameter)
    • 1 lb.in. to 250 lb.in. torque (0.1 Nm to 28.25 Nm torque)
    • Numerous model and styles with customization capabilities to solve virtually any application requirement
