AS Series | Formsprag Clutch

Model AS is a ramp & roller type clutch, non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing are required. Nominal outside dimensions are the same as a Series 62 ball bearing.

Product Features

  • The inner race is keyed to the shaft (except for size 6 mm bore).
  • The outer race has a positive r6 tolerance to give a press fit in a H7 housing.
  • Can accept an axial misalign- ment of inner and outer race of ± S/2.
  • These clutches are oil dipped at the factory but must be filled to the proper level before operation.
  • This clutch is designed for oil lubrication . For grease lubrication, reduce the maximum overrunning speed to 50% of listed value.

Product Data Sheets

  • p-956-fc_as
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • Overrunning, Indexing, Backstopping Clutches

Service Manual

  • Overrunning Clutches Models AS & ASNU Installation

Product News

Contact Info

Formsprag Clutch
23601 Hoover Rd.
Warren, MI 48089 - USA
Toll Free: 1-800-348-0881 (Press #1)
Phone: 586-758-5000
Fax: 586-758-5204

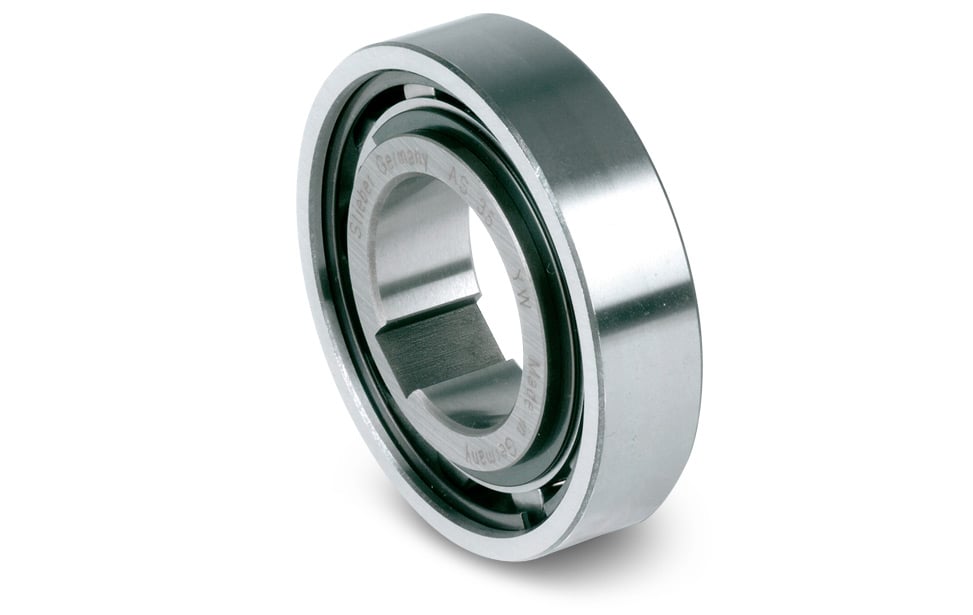

Formsprag AS Clutch
