GFK Series | Formsprag Clutch

Model GFK is a sprag type clutch integrated into a 59 Series ball bearing.

This design provides high torque capacity for minimal outside diameter.

It is a bearing supported type, shipped grease lubricated.

Oil bath lubrication is also possible if the original grease is first removed by flushing the clutch with a suitable solvent.

Whatever the lubrication type, seals should be provided, as illustrated below.

Torque transmission must be ensured by a press fit assembly into a rigid outer housing with R6 tolerance, and onto a shaft with p5 tolerance.

The total press fit on the GFK should not exceed the internal clearance for the model as listed in the Internal Clearance Column.

Product Features

  • Bearing supported type, shipped grease lubricated.
  • Operating temperature ranges from -4°F to +212°F (-20°C to +100°C)
  • Peaks up to 248°F (+120°C) are acceptable for short periods

Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • Overrunning, Indexing, Backstopping Clutches

Product News

Contact Info

Formsprag Clutch
23601 Hoover Rd.
Warren, MI 48089 - USA
Toll Free: 1-800-348-0881 (Press #1)
Phone: 586-758-5000
Fax: 586-758-5204

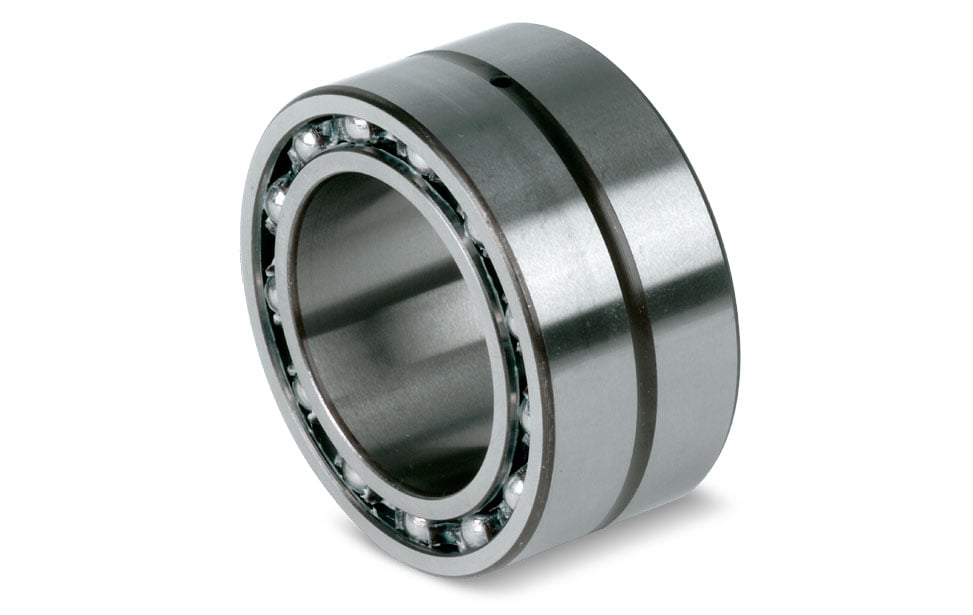

GFK Series Clutch
