FSR Series | Formsprag Clutch

There are eight sleeve-bearing clutch models suitable for general purpose applications—overrunning, indexing and backstopping.  A keyseat and snap-ring groove are provided to secure attached parts to the hub, which is ground as a mounting surface. Oil lubricated models have a Buna-N oil seal at each end of the clutch which provides positive lubricant sealing. They can be removed for free lubricant flow if clutch is operated in an oil bath.

The shaft must extend through the full length of the clutch and must be held to recommended limits because the sleeve- bearing in the outer race rides on the shaft.

Product Features

  • All FSR model clutches incorporate Formchrome® sprags
  • Models FSR-5 thru FSR-16 have the Formsprag “Free-action” sprag retainer


Product Data Sheets

  • p-956-fc_fsr
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • Overrunning, Indexing, Backstopping Clutches

Service Manual

  • General Purpose Overrunning Clutches FSR-3 thru 16 Installation

Related Literature

  • Application Guide Overruning Clutches
  • Formsprag Clutch Line Card

Product News

Contact Info

Formsprag Clutch
23601 Hoover Rd.
Warren, MI 48089 - USA
Toll Free: 1-800-348-0881 (Press #1)
Phone: 586-758-5000
Fax: 586-758-5204
Email: info@formsprag.com
www.formsprag.com

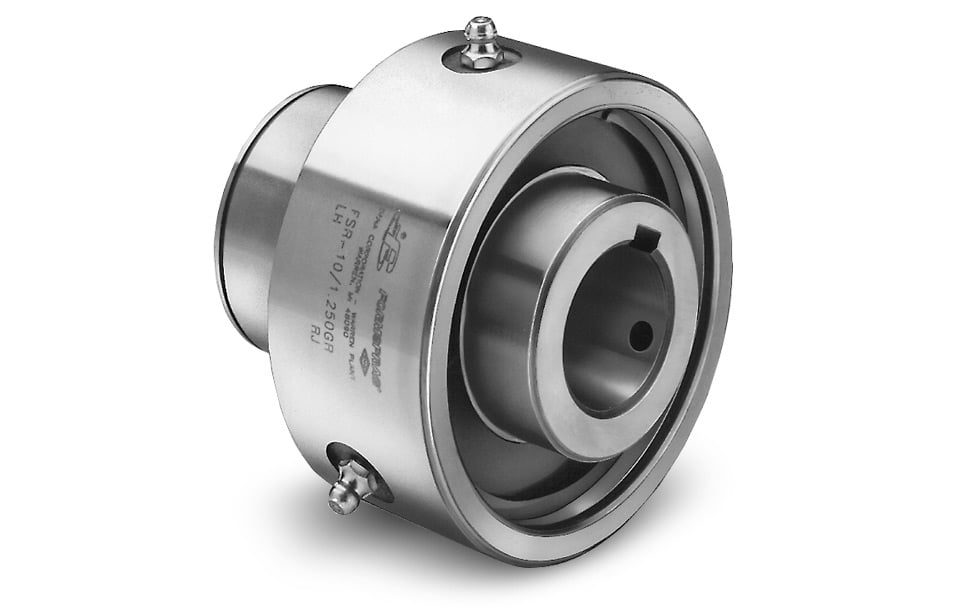

FSR Series Sleeve Bearing Supported Clutch
