FS-02, 04, 05 Series | Formsprag Clutch

These small clutches are ideal for use in all types of small machines and precision instruments and may be used for overrunning, indexing and backstopping applications . They are sleeve bearing clutches .

FS 02 through 05 clutches are shipped from the factory lubricated for life with Fiske Brothers Lubriplate Low-Temp grease .

Model FS-02, FS-04

Models FS-02 and FS-04 are secured to the Shaft by a roll pin provided with the clutch . Both the hub and the O.D. of the outer race are ground to close limits and may be used to mount attaching parts .

Model FS-05

Model FS-05 is driven from the shaft by (6) a .125” key. Parts should be mounted on the ground O.D. of the clutch. Snap rings 30 and Woodruff key are provided.

Product Data Sheets

  • p-956-fc_fs_02_04_05
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • Overrunning, Indexing, Backstopping Clutches

Service Manual

  • General Purpose Clutches FS-02 & FS-04 Installation
  • Model FS 05 Installation

Related Literature

  • Application Guide Overruning Clutches
  • Formsprag Clutch Line Card

Product News

Contact Info

23601 Hoover Rd.
Warren, MI 48089
Phone: 1-800-348-0881 (Press #1)
Email: info@formsprag.com
www.formsprag.com

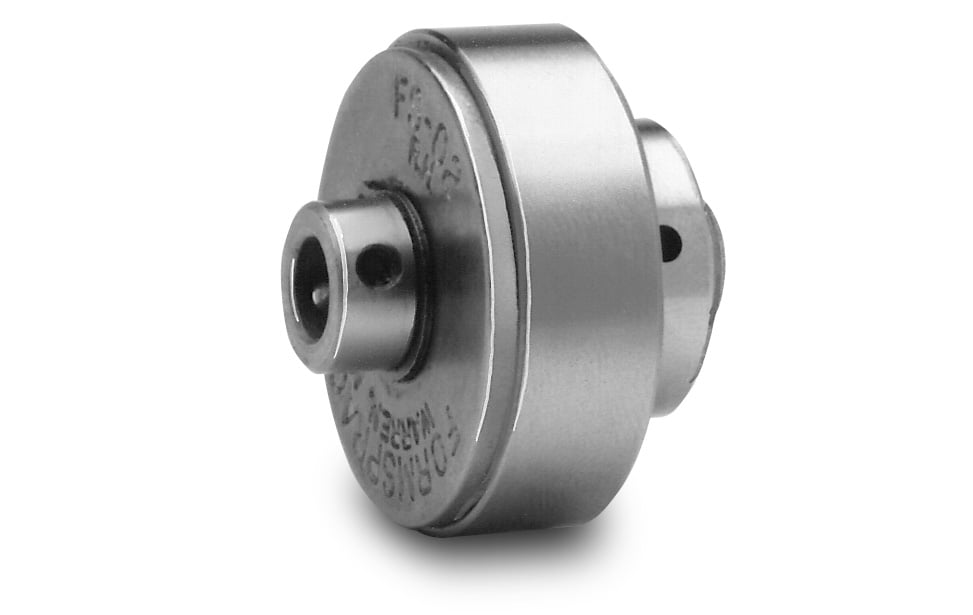

FS 02, 04, 05 Sleeve Bearing Supported Clutch
