HPI Indexing Clutches | Formsprag Clutch

HPI clutches are mounted on the head shaft and translates the reciprocating motion from the crank mechanism into incremental motion in one direction,advancing the conveyor a uniform distance with each drive stroke and then overrunning in the opposite direction on the return stroke. These clutches are available with FDA approved food grade greases and a variety of surface coatings required for wash down duty.

Product Features

  • 11 Different Sizes
  • Bore Range: 0.5 to 7.0 in.
  • Torque Range: 275 to 27,000 lb. ft.
  • Outer diameter of outer race is ground for use as a piloting or mounting surface for attaching parts.

Product Data Sheets

  • p-956-fc_fso_hpi
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • Overrunning, Indexing, Backstopping Clutches

Service Manual

  • High Performance Indexing Clutches HPI 300 thru 1027 Install

Related Literature

  • Formsprag Clutch Line Card

Product News

Contact Info

Formsprag Clutch
23601 Hoover Rd.
Warren, MI 48089 - USA
Toll Free: 1-800-348-0881 (Press #1)
Phone: 586-758-5000
Fax: 586-758-5204
Email: info@formsprag.com
www.formsprag.com

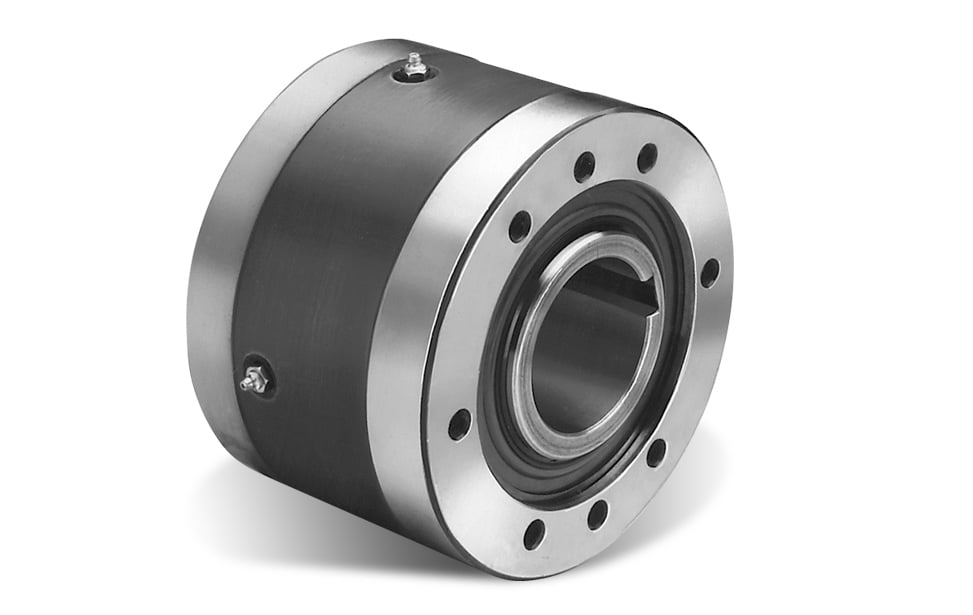

fc-hpi-indexing-clutch
